MX10FIT665-xx



NWAV™ X-Pol Ten-Port Antenna
Download this datasheet

X-Pol Ten-Port 6 ft, 65° Form in Tighter with Smart Bias Ts, 698-4200 MHz:

2 ports 698-894 MHz, 4 ports 1695-2200 MHz, and 4 ports 3400-4200 MHz
  • Excellent passive intermodulation (PIM) performance reduces harmful interference.

  • Fully integrated (iRETs) with independent RET control for low band and mid band

  • FET configured with internal RET for high band & ease of future network optimization.

  • SON-Ready array spacing supports beamforming capabilities

  • Suitable for 3G, 4G, and 5G interface technologies

  • Integrated Smart Bias-Ts reduce leasing costs

  • Optimized form factor for reduced wind loading

Electrical specification (minimum/maximum) Ports 1, 2 Ports 3, 4, 5, 6
Frequency bands, MHz 698-806 806-894 1695-1880 1850-1990 1920-2200
Polarization ± 45° ± 45°
Average gain over all tilts, dBi 14.4 14.8 17.8 18.1 18.2
Horizontal beamwidth (HBW), degrees1 66.0 61.0 63.0 63.0 58.0
Front-to-back ratio, co-polar power @180°± 30°, dB >22 >22.0 >25.0 >25.0 >25.0
X-Pol discrimination (CPR) at boresight, dB >17.0 >15.6 >23 >18 >18
Vertical beamwidth (VBW), degrees1 13.5 12.0 6.0 5.5 5.4
Electrical downtilt (EDT) range, degrees   2-14 0-9
First upper side lobe (USLS) suppression, dB1 ≤-17.0 ≤-16.0 ≤-17.0 ≤-16.0 ≤-16.0
Cross-polar isolation, port-to-port, dB1 25 25 25 25 25
Max VSWR / return loss, dB 1.5:1 / -14.0 1.5:1 / -14.0
Max passive intermodulation (PIM), 2x20W carrier, dBc -153 -153
Max input power per any port, watts 300 250
Total composite power all ports (1-10), watts 1500

1 Typical value over frequency and tilt

Electrical specification (minimum/maximum)   Ports 7, 8, 9, 10
Frequency bands, MHz 3400-3550 3550-3700 3700-3950 3950-4200
Polarization   ± 45°
Average gain over all tilts, dBi 13.6 13.8 14.0 14.2
Horizontal beamwidth (HBW), degrees 65 62 60 58
Front-to-back ratio, co-polar power @180°± 30°, dB >23 >23 >23 >22
Vertical beamwidth (VBW), degrees1 20 19.6 19.3 18.5
Electrical downtilt (EDT) range, degrees 2-12 orderable in 1 deg increments
First upper side lobe (USLS) suppression, dB1 ≤-15 ≤-15 ≤-15 ≤-15
Cross-polar isolation, port-to-port, dB1 25 25 25 25
Max VSWR / return loss, dB   1.5:1 / -14.0
Max input power per any port, watts 150
Total composite power all ports (1-10), watts 1500

1 Typical value over frequency and tilt

* For ports 7-10, the electrical downtilt is FET configured with internal RET, where the required electrical downtilt is defined at the time of order per the ordering information below.



Ordering information
Antenna model Description
MX10FIT665-xx (xx represents the FET in one degree increments for 3.4-4.2 GHz) 6F X- Pol 10 Port FIT 65⁰ 2-14⁰/ 0-9⁰/ 2-12⁰, 4.3-10 & SBTs
xx=02 thru 12 for each 1 degree tilt 3.4-4.2 GHz
Examples MX10FIT665-02 – 2deg, MX10FIT665-09 – 9deg, MX10FIT665-12-12deg
Optional accessories
AISG cables M/F cables for AISG connections
PCU-1000 RET controller Stand-alone controller for RET control and configurations
91900314-02 Dual Mount Bracket (see 91900314 bracket document for details)
Mechanical specifications
Dimensions height/width/depth, inches (mm) 70.9/ 12.2/ 7.5 (1800/ 309.9/ 190.5)
Shipping dimensions length/width/height, inches (mm) 76/ 20/ 14.5 (1930/ 508/ 368)
No. of RF input ports, connector type, and location 10 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 53.4 (24.3)
Shipping weight, lb (kg) 83.6 (37.9)
Antenna mounting and downtilt kit included with antenna 91900318
Net weight of the mounting and downtilt kit, lb (kg) 20.3 (9.2)
Range of mechanical up/down tilt -2° to 12°
Rated wind survival speed, mph (km/h) 150 (241)
Frontal and lateral, and rear wind loading @ 150 km/h, lbf (N) 66.9 (297.6), 60.0 (266.9)
Equivalent flat plate @ 100 mph and Cd=2, sq ft 1.49
EPA frontal and lateral, ft2, (m2) 3.0 (0.28), 3.6 (0.33)

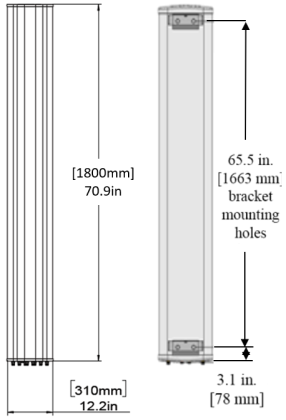

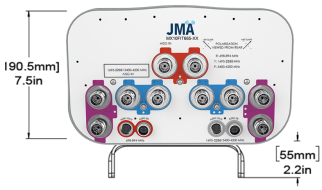

Front view Back view Bottom view
Remote electrical tilt (RET 1000) information
RET location Integrated into antenna
RET interface connector type 8-pin AISG connector per IEC 60130-9 or RF port bias-t
RET connector torque Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight)
RET interface connector quantity 2 pairs of AISG male/female connectors and 2 RF port bias-ts
RET interface connector location Bottom of the antenna
Total no. of internal RETs 698-894 MHz 1
Total no. of internal RETs 1695-2180 MHz 1
Total no. of internal RETs 3400-4200 MHz 1
RET input operating voltage, vdc 10-30
RET max power consumption, idle state, W ≤ 2.0
RET max power consumption, normal operating conditions, W ≤ 13.0
RET communication protocol AISG 2.0 / 3GPP
RET and RF connector topology
Each RET device can be controlled either via the designated external AISG connector or RF smart bias-t port as shown below:



Band RF port Band RF port
3400-4200 7-10 1695-2200 3-6



Band RF port
698-894 1-2
Note: The RET Device for 3400-4200 MHz is connected via the 1695-2200 Port 3 Bias T port or 1695-2200/3400-4200 MHz AISG ports.
Array topology

5 sets of radiating arrays

R1: 698-894 MHz

B1: 1695-2200 MHz

B2: 1695-2200 MHz

P1: 3400-4200 MHz

P2: 3400-4200 MHz
Band RF port
698-894 1-2
1695-2200 3-4
1695-2200 5-6
3400-4200 7-8
3400-4200 9-10

V3.0

01/04/24
