2-port 10 in. 65° panel antenna 617-3980 MHz |
|
|---|---|
|
|
| Electrical specification (min/max) |
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Frequency bands, MHz | 617-806 | 806-894 | 894-960 | 1695-1880 | 1850-1990 | 1920-2180 | 2300-2400 | 2496-2690 | ||
| Polarization | ± 45° | ± 45° | ||||||||
| Maximum gain over all tilts, dBi | 6.3 | 6.5 | 6.4 | 8.4 | 8.2 | 8.4 | 8.1 | 9.0 | ||
| Average gain over all tilts, dBi | 5.8 | 5.8 | 5.8 | 7.6 | 7.5 | 7.8 | 7.6 | 8.0 | ||
| Horizontal beamwidth (HBW), degrees1 | 90 | 85 | 88 | 69 | 62 | 67 | 67 | 60 | ||
| Vertical beamwidth (VBW), degrees1 | 90 | 85 | 88 | 69 | 62 | 67 | 67 | 60 | ||
| Fixed electrical downtilt (EDT), degrees | 0° | |||||||||
| Cross-polar discrimination (0°) | 15 | 20 | 20 | 17 | 22 | 19 | 20 | 19.2 | ||
| Cross-polar isolation, port-to-port, dB1 | 20 | 25 | ||||||||
| Max VSWR / return loss, dB | 1.8:1 / -11.0 | 1.8:1 / -11.0 | 2.0:1 / -10.0 | 1.6:1 / -13.0 | 1.6:1 / -13.0 | 1.6:1 / -13.0 | 1.6:1 / -13.0 | 1.6:1 / -13.0 | ||
| Max PIM (3rd order, 2x20W) dBc | -150 | -150 | ||||||||
| Maximum input power port, watts | 40 | 40 | ||||||||
| Electrical specification (min/max) |
|
|
|---|---|---|
| Frequency bands, MHz | 3400-3980 | |
| Polarization | ± 45° | |
| Maximum gain, dBi | 8.0 | |
| Average gain, dBi | 7.0 | |
| Horizontal beamwidth (HBW), degrees1 | 57 | |
| Vertical beamwidth (VBW), degrees1 | 57 | |
| Fixed electrical downtilt (EDT), degrees | 0° | |
| Cross-polar discrimination (0°) | 15 | |
| Cross-polar isolation, port-to-port, dB1 | 23 | |
| Max VSWR / return loss, dB | 1.6:1 / -13.0 | |
| Max PIM (3rd order, 2x20W) dBc | -145 | |
| Maximum input power, watts | 40 |
| 1 Typical value over frequency. |
| Mechanical specifications | |
|---|---|
| Dimensions height/width/depth, inches (mm) |
10.98/ 7.87/ 3.78 (279/ 200/ 96) |
| No. of RF input ports, connector type, and location | 2 x 4.3-10 female, bottom |
| RF connector torque | 96 lbf·in (10.85 N·m or 8 lbf·ft) |
| Net antenna weight, lb (kg) | 1.3 (0.59) |
| Installation instructions | DX-*/SX-*/IX-* Antenna Mounting Instructions and Kits 81900511 |
| Weep hole drilling instructions | DX-*/SX-*/IX-* Antenna Weep Hole Modification Guide |
| Regulatory compliance/certifications | |
|---|---|
| ROHS | Compliant. See JMA support page |
| REACH | Compliant. See JMA support page |

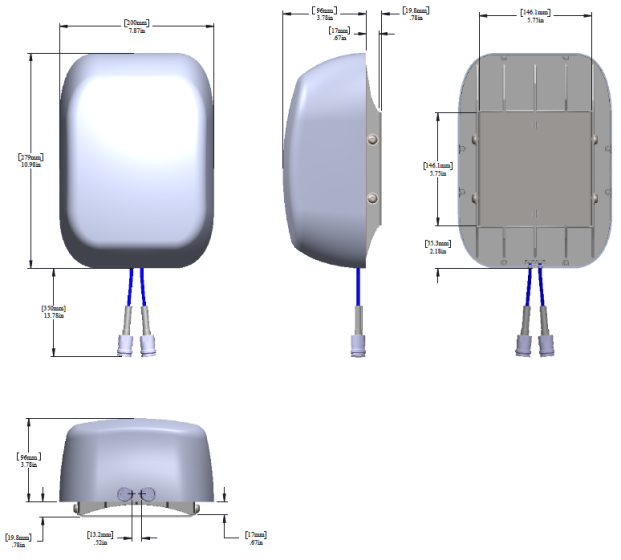

| Dimensions |
|---|
|
| Ordering information | |
|---|---|
| Antenna model | Description |
| IX02PNL165-65 | 10 inch, 65 deg, 2 port panel antennaincl mount bracket |
V4.0
