PHAZR™ mmWave small cells are ideal for environments such as offices, airports, stadium suites, and other areas that can take advantage of 5G spectrum performance. Designed to work with XRAN® standard interfaces, creating the most complete set of venue solutions in the industry.

PHAZR TECHNOLOGY

Solving Critical 5G Challenges

5G mmWave & MidBand

PHAZR antenna solutions are ideal for delivering 5G performance using mmWave or Mid-bands into a wide range of venues and outdoor environments.

24, 28 and 39 GHz mmWave options

Small footprint, multiple mounting options

Designed specifically for in-building and large venues

Fully integrated DU function with F1 external interface

Supports Standard X2 Dual Connectivity for NSA operation

Network utilizing standard Ethernet switching technology

Centralize CU layer operates in virtualized software platforms

Easy migration to 5G Core Stand Alone (SA)


PHAZR IOTA

Multi-band indoor small cell


  • Office environments, airports, concourses
  • Ceiling or wall mount
  • Fiber to antenna
  • 30dBmi, 120V/120H coverage
  • Integral 5GNB DU function – works with PHAZR CU software
  • 9″ x 13″ x 2″ ~5 lbs, indoor rated
  • DC class 2 powered, passive cooling

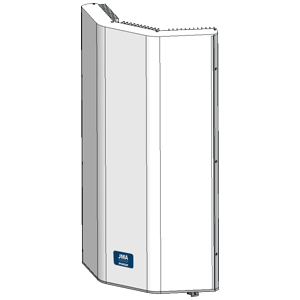

PHAZR RABACK

Multi-sector outdoor 5G cell site solution


  • Cities, rural, stadium, arenas
  • Pole or surface mount
  • One 120° sector/units (3 40° subsectors)
  • Fully integrated 5GNB (DC+CU) 5GCore fiber to antenna
  • 24″ x 12″ x 2.5″ outdoor rated
  • DC powered, passive cooling

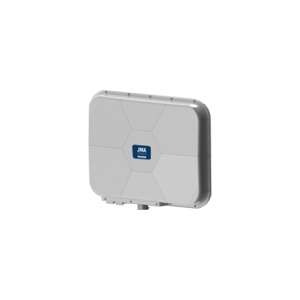

PHAZR STRAN

Multi-band outdoor small cell


  • Cities, rural, stadiums, areans
  • Strand, pole, or surface mount
  • Fiber to antenna
  • 50dBmi, 90H/40V coverage
  • Integral 5GNB DU function – works with PHAZR CU software
  • 9″ x 13″ x 2″ ~5 lbs, outdoor rated
  • DC powered, passive cooling


JMA Wireless Acquires 5G focused PHAZR. For more information, please reference our press release.
