UXP-4MT-38SA-01

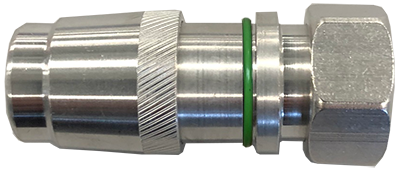

4.3-10 Male Torque Connector for 3/8” Superflexible Alternate Cable

Installation video
Installation instructions
Contact technical support:
1-888-201-6073
techsupport@jmawireless.com
Download this datasheet
General Specification
Interface/gender 4.3-10 Male, torque type
Cables supported1 Manufacturer: P/N Manufacturer P/N
Eupen EC2-50-HF Amphenol AFY-50-38SLL-PE
Weight 0.189 lb | 86.2 g
JMA Weather Protection System WPS-4MT-38S-01
Tools required JMA part number Comment
Cable preparation SP-38S-01 "SA" bit
Connector compression HCG-FRAMESET-38S, HCG-CC
Torque wrench TQ-78-F8 8 lbf·ft | 10.85 N·m
Frequency band VSWR Return loss (dB)
DC-1000 MHz 1.02 40
1000–2000 MHz 1.03 36
2000–4000 MHz 1.05 32
4000–6000 MHz 1.08 28
Electrical Specification Comment
Connector impedance 50 ohm
Operating frequency band DC–6 GHz
3rd order IMD dynamic, (PIM) -161 dBc, typical; -155 dBc, min IEC 62037-2, -3
DC test voltage 2500 V
Center contact resistance ≤ 1.0 milliohm
Outer contact continuity 1.0 milliohm max.
Average power 500 W @ 2 GHz
Peak power, max. 13.2 kW
Insertion loss, typical 0.05 dB Per connector
Shielding effectiveness < -120 dB @ 0-1 GHz
Mechanical Specification Comment
Pull force combined .78 kN | >175 lb Cable limited
Cable retention torque 6.7 N·m | 5 lbf·ft Cable limited
Interface durability 100 cycles IEC 61169-4:9.5
Environmental Specification Test
Operating temperature -55 °C to +85 °C (-67 °F to 185 °F)
Storage temperature -55 °C to +85 °C (-67 °F to 185 °F)
Accelerated UV 1000 hr ASTM G154
Immersion test method Mated & unmated, IP68 IEC 60529:2001 & ANSI/SCTE 60
Water jetting test method Mated & unmated, IP66 IEC 60529:2001
Mechanical shock test method Pass IEC 60068-2-27
Thermal shock test method Pass IEC 60068-2-14
Vibration test method 100 m/s2, 2 Hz to 200 Hz IEC 61169-1:2003
Corrosion test method 1000 hr IEC 60068-2-11
1For cable types not listed, please contact JMA Technical Support.

12/16/24
