| General | Specification | |||
|---|---|---|---|---|

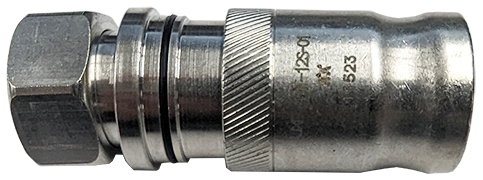

| Interface/gender | 4.3-10 Male, torque type | |||
| Cables supported1 | Manufacturer | P/N | Manufacturer | P/N |
| JMA Wireless | JMA12S-50 | HUBER+SUHNER | SF 1/2 HF | |
| JMA12SR-50 | Eupen | EC4HF | ||
| CommScope | FSJ4 | Leoni Flexline | 1/2"S | |
| FSJ4RK | LS/Superior Essex | HFSC 12D | ||
| FSJ4RN-50 | FSC12DPV | |||
| HS4RP | Hansen | RF5012S | ||
| RFS | SCF12 | RF5012SZ | ||
| Rosenbeger | SL 1/2" S | Wireless Supply | WS12/SF | |
| NK Draka | RFF1200 | WS12/SF/WP | ||
| Weight | 0.345 lb | 156.5 g | |||
| JMA Weather Protection System | WPS-4MT-12S-01 | |||
| Tools required | JMA part number | Comment |
|---|---|---|
| Cable preparation | SP-12S-01 | COR12S-01 |
| Connector compression | HCG-FRAMESET-1/2, HCG-CC | Insert D |
| Torque wrench | TQ-78-F8 | 8 lbf·ft | 10.85 N·m |
| Frequency band | VSWR | Return loss (dB) | |||
|---|---|---|---|---|---|
| Foam Dielectric | Air Dielectric | Foam Dielectric | Air Dielectric | Foam Dielectric | Air Dielectric |
| DC-1000 MHz | 555-1000 MHz | 1.02 | 1.02 | 40 | 40 |
| 1000–2000 MHz | 1000–2700 MHz | 1.03 | 1.03 | 36 | 36 |
| 2000–4000 MHz | 2700–3800 MHz | 1.05 | 1.07 | 32 | 29 |
| 4000–6000 MHz | 3800–6000 MHz | 1.08 | 1.15 | 28 | 23 |
| Electrical | Specification | Comment |
|---|---|---|
| Connector impedance | 50 ohm | |
| Operating frequency band | DC–6 GHz | |
| 3rd order IMD dynamic, (PIM) | -161 dBc, typical | IEC 62037-2, -3 |
| DC test voltage | 2500 V | |
| Center contact resistance | ≤ 0.8 milliohm | |
| Outer contact continuity | 1.5 milliohm max. | |
| Average power | 600 W @ 900 MHz | |
| Peak power, max. | 15 kW | |
| Insertion loss, typical | 0.05 dB | Per connector |
| Shielding effectiveness | < -120 dB | @ 0-1 GHz |
| Mechanical | Specification | Comment |
|---|---|---|
| Pull force combined | .78 kN | >175 lb | Cable limited |
| Cable retention torque | 6.7 N·m | 5 lbf·ft | Cable limited |
| Interface durability | 100 cycles | IEC 61169-4:9.5 |
| Environmental | Specification | Test |
|---|---|---|
| Operating temperature | -55 °C to +85 °C (-67 °F to 185 °F) | |
| Storage temperature | -55 °C to +85 °C (-67 °F to 185 °F) | |
| Accelerated UV | 1000 hr | ASTM G154 |
| Immersion test method | Mated & unmated, IP68 | IEC 60529:2001 & ANSI/SCTE 60 |
| Water jetting test method | Mated & unmated, IP66 | IEC 60529:2001 |
| Mechanical shock test method | Pass | IEC 60068-2-27 |
| Thermal shock test method | Pass | IEC 60068-2-14 |
| Vibration test method | 100 m/s2, 2 Hz to 200 Hz | IEC 61169-1:2003 |
| Corrosion test method | 1000 hr | IEC 60068-2-11 |
|
|
