TDC-C |
| Directional Coupler | |
|---|---|
|
| Product Classification | |
|---|---|
| Regional Availability | US |
| Product Type | Directional Coupler |
| Product Brand | JMA DAS |
| General Specifications | |
|---|---|
| Frequency range | 2 – 4.2GHz |
| Coupling | 20dB ±1dB |
| Max Input power | 1W |
| Operating temperature | -50°C to +100°C (-58°F to +212°F) |
| Impedance | 50W |
| Connector type | SMA Female |

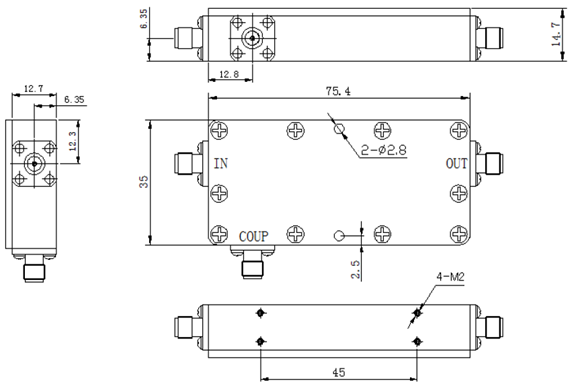

Dimensions in millimeters (mm) |
|
|
Please contact your local JMA representative for detailed specifications |
