4-port 1 ft 65° panel antenna 617-894, 1695-2690, 3400-4200 MHz: 2 ports 617-3980 MHz and 2 ports 3400-4200 MHz |
|
|---|---|
|
|
| Electrical specification (min/max) |
|
|||||||
|---|---|---|---|---|---|---|---|---|
| Frequency bands, MHz | 617-798 | 824-894 | 1695-1880 | 1850-1990 | 1920-2180 | 2300-2400 | 2496-2690 | |
| Polarization | ± 45° | ± 45° | ||||||
| Average gain, dBi | 8.2 | 7.0 | 11.7 | 12.0 | 12.8 | 13.0 | 13.6 | |
| Horizontal beamwidth (HBW), degrees1 | 77.3° | 80.0° | 62.0° | 65.0° | 66.0° | 68.0° | 57.0° | |
| Vertical beamwidth (VBW), degrees1 | 73.0° | 82.5° | 28.0° | 26.2° | 24.2° | 22.0° | 20.7° | |
| Fixed electrical downtilt (EDT), degrees | 0° | |||||||
| Cross-polar isolation, port-to-port, dB1 | 25 | 25 | ||||||
| Max VSWR / return loss, dB | 1.5:1 / -14.0 | 1.5:1 / -14.0 | ||||||
| Max PIM (3rd order, 2x20W) dBc | -153 | -153 | ||||||
| Maximum input power port, watts | 250 | 125 | ||||||
| Electrical specification (min/max) | Ports 1, 2 | Ports 3, 4 | |||||
|---|---|---|---|---|---|---|---|
| Frequency bands, MHz | 3400-3550 | 3550-3700 | 3700-3980 | 3400 - 3550 | 3550-3700 | 3700-3980 | 3400-4200 |
| Polarization | ± 45° | ± 45° | |||||
| Average gain, dBi | 14.3 | 14.5 | 14.7 | 11 | 11.2 | 11.4 | 11.6 |
| Horizontal beamwidth (HBW), degrees1 | 70 | 68 | 66 | 74 | 72 | 70 | 68 |
| Vertical beamwidth (VBW), degrees1 | 18 | 16 | 15 | 52 | 50 | 48 | 46 |
| Fixed electrical downtilt (EDT), degrees | 0° | 0° | |||||
| Cross-polar isolation, port-to-port, dB1 | 25 | 25 | |||||
| Max VSWR / return loss, dB | 1.5:1 / -14.0 | 1.5:1 / -14.0 | |||||
| Max PIM (3rd order, 2x20W) dBc | -145 | -145 | |||||
| Maximum input power, watts | 50 | 50 | |||||
| 1 Typical value over frequency. |
| Mechanical specifications | |
|---|---|
| Dimensions height/width/depth, inches (mm) |
15.0/ 14.6/ 6.4 (381/ 370.84/ 162.56) |
| No. of RF input ports, connector type, and location | 4 x 4.3-10 female, back |
| RF connector torque | 96 lbf·in (10.85 N·m or 8 lbf·ft) |
| Net antenna weight, lb (kg) | 9.5 (4.3) |
| Weight with supplied bracket, lb (kg) | 14.7 (6.7) |
| Shipping weight, lbs. (kg) | 21.6 (9.8) |
| Supplied bracket kit | 91900324 (included) |
| Mechanical down-tilt range | +/- 25° lateral (azimuth adjustment) and +/- 50° vertical (up/down tilt) |
| Rated wind survival speed, mph (km/h) | 120 (193) with 91900324 bracket kit |
| Frontal wind loading @ 150 km/h, lbf (N) | 9.5 (42.291) |
| Equivalent flat plate @ 100 mph and Cd=2, sq ft | 0.19 |
| Installation instructions | DX-*/SX-*/IX-* Antenna Mounting Instructions and Kits 81900511 |
| Weep hole drilling instructions | DX-*/SX-*/IX-* Antenna Weep Hole Modification Guide |
| Front view | Back view | Side view |
|---|---|---|
 |
|
 |

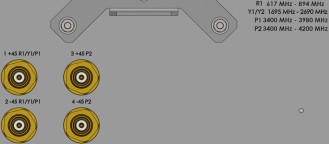

| Connector View | ||
|
||
| Array topology | Notes | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Refer to JMA weep hole modification guide at jmawireless.com for mandatory drilling instructions. The SX antennas can be painted in accordance with the JMA painting guidelines at jmawireless.com |
|||||||||||||||
| Ordering information | |
|---|---|
| Antenna model | Description |
| SX04FRO165-01 | 1F X-Pol 4-port panel 65°, 4.3-10 |
| 919055 | Optional inverted mounting kit for 4.0-10.0 in. OD pole |
| 91900313 | Optional bracket kit for extended horizontal and vertical tilt ranges |
V6.0
