MX24FSS833-01



NWAV™ X-Pol 24-Port Antenna
Download this datasheet

X-Pol 24-Port 8 ft Sector/Multibeam Antenna, 40°/32°, with Smart Bias Ts, 698-2690 MHz:

8 ports 698-894 MHz (40°), 16 ports 1695-2690 MHz (32°)
  • Ability to convert traditional 3 sectors to 6 sectors with enhanced sector splitting in low band and midband in a low-profile single antenna
  • High gain 8 port per beam for midband to improve uplink diversity for new high power 4T8R radios
  • Optimized pattern, with excellent sector roll-off and stable crossover between sectors
  • Fully integrated (iRETs) with independent RET control for low-band and midband arrays per beam
  • Superior pattern characteristics with excellent cross polarization discrimination, front-to-back ratio performance, and maximum gain
  • Excellent passive intermodulation (PIM) performance reduces harmful interference.
  • Integrated Smart Bias-Ts reduce leasing costs
  • Optimized form factor for reduced wind loading

Electrical specification (minimum/maximum) Ports 1-8 Ports 9-24
Frequency bands, MHz 698-798 824-894 1695-1880 1850-1990 1920-2200 2300-2360 2496-2690
Polarization ± 45° ± 45°
Maximum gain over all tilts, dBi 16.3 16.7 17.7 18.0 19.1 19.0 18.8
Average gain over all tilts, dBi 16.0 ± 0.3 16.4 ± 0.3 17.4 ± 0.3 17.7 ± 0.3 18.7 ± 0.3 18.8 ± 0.2 18.5 ± 0.3
Horizontal beamwidth (HBW), degrees1 42 40 34 32 30 27 26
Front-to-back ratio, co-polar power @180°± 30°, dB >28.0 >27.0 >30.0 >33.0 >33.0 >29.0 >30.0
Front-to-back ratio, co-polar power @180°, dB >36.0 >36.0 >35.0 >38.0 >38.0 >38.0 >38.0
X-Pol discrimination (CPR) at boresight, dB >20.0 >18.0 >19 >19 >19 >18 >18
Vertical beamwidth (VBW), degrees1 17.5 16.9 16.8 15.9 14.7 13.0 12.0
Electrical downtilt (EDT) range, degrees   2-14 2-12
First upper side lobe (USLS) suppression, dB1 ≤-15.0 ≤-15.0 ≤-16.0 ≤-16.0 ≤-16.0 ≤-16.0 ≤-16.0
Cross-polar isolation, port-to-port, dB1 25 25 25 25 25 25 25
Max VSWR / return loss, dB 1.5:1 / -14.0 1.5:1 / -14.0
Max passive intermodulation (PIM), 2x20W carrier, dBc -153 -153
Max input power per any port, watts 300 250
Total composite power all ports, watts 1500

1 Typical value over frequency and tilt

Mechanical specifications
Dimensions height/width/depth, inches (mm) 96/ 25/ 11.9 (2438/ 625/ 302.26)
Shipping dimensions length/width/height, inches (mm) 100.6/ 29/ 14.5 (2555/ 737/ 368)
No. of RF input ports, connector type, and location 16 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 112 (50.8)
Shipping weight, lb (kg) 173 (78.4)
Antenna mounting and downtilt kit included with antenna 91900318, 91900319 (middle bracket)
Net weight of the mounting and downtilt kit, lb (kg) 26 (11.82)
Range of mechanical up/down tilt -2° to 12°
Rated wind survival speed, mph (km/h) 150 (241)
Frontal and lateral wind loading @ 150 km/h, lbf (N) 220 (978), 70 (311)
EPA frontal 10.0

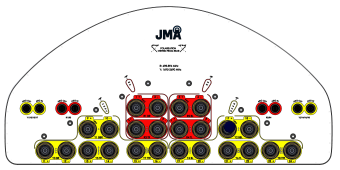

Front view Back view Bottom view
Ordering information
Antenna model Description
MX24FSS833-01 8F X- Pol 24 PORT SPLIT SECTOR 2-14⁰/ 2-12⁰ RET, 4.3-10 & SBT
Optional accessories
AISG cables M/F cables for AISG connections
PCU-1000 RET controller Stand-alone controller for RET control and configurations
91900314-03 Dual Mount Bracket (see 91900314 bracket document for details)
Remote electrical tilt (RET 1000) information
RET location Integrated into antenna
RET interface connector type 8-pin AISG connector per IEC 60130-9 or RF port bias-t
RET connector torque Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight)
RET interface connector quantity 4 pairs of AISG male/female connectors and 4 RF port Bias Ts
RET interface connector location Bottom of the antenna
Total no. of internal RETs 698-894 MHz 2
Total no. of internal RETs 1695-2690 MHz 2
RET input operating voltage, vdc 10-30
RET max power consumption, idle state, W ≤ 2.0
RET max power consumption, normal operating conditions, W ≤ 13.0
RET communication protocol AISG 2.0 / 3GPP
    RET and RF connector topology
   Each RET device can be controlled either via the designated external AISG connector or RF smart bias-t port as shown below:
Array ID R1 R3 R2 R4 Y1 Y3 Y5 Y7 Y2 Y4 Y6 Y8
RF port 1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16 13-14 15-16 21-22 23-24
RET ID 1 2 3 4
Array topology

12 sets of radiating arrays

R1: 698-894 MHz

R2: 698-894 MHz

R3: 698-894 MHz
R4: 698-894 MHz

Y1: 1695-2690 MHz

Y2: 1695-2690 MHz

Y3: 1695-2690 MHz

Y4: 1695-2690 MHz

Y5: 1695-2690 MHz

Y6: 1695-2690 MHz

Y7: 1695-2690 MHz

Y8: 1695-2690 MHz
Array ID Band RF port RET#
R1 698-894 1-2 1
R3 698-894 3-4
R2 698-894 5-6 2
R4 698-894 7-8
Y1 1695-2690 9-10 3
Y2 1695-2690 17-18 4
Y3 1695-2690 11-12 3
Y4 1695-2690 19-20 4
Y5 1695-2690 13-14 3
Y6 1695-2690 21-22 4
Y7 1695-2690 15-16 3
Y8 1695-2690 23-24 4
