MX08FRO565-20

NWAV™ X-Pol 8-Port Antenna
Download this datasheet

X-Pol 8-Port 5 ft 65° Fast Roll Off:

4 ports 617-894 MHz and 4 ports 1695-2200 MHz

  • Fast Roll Off (FRO™) azimuth beam pattern improves Intra- and Inter-cell SINR

  • Excellent passive intermodulation (PIM) performance reduces harmful interference.

  • Fully integrated (iRETs) with independent RET control for low and mid bands for ease of network optimization

  • SON-Ready array spacing supports beamforming capabilities.

  • High total power handling to maximize network efficiency

  • Reduced tower loading for ease of site deployment

Fast Roll-Off antennas increase data throughput without compromising coverage
The horizontal beam produced by Fast Roll-Off (FRO) technology increases the Signal to Interference & Noise Ratio (SINR) by eliminating overlap between sectors .
Non-FRO antenna Large traditional antenna pattern overlap creates harmful interference. JMA FRO antenna
JMA’s FRO antenna pattern minimizes overlap, thereby minimizing interference.
LTE throughput SINR Speed (bps/Hz) Speed increase CQI
Excellent >18 >4.5 333+% 8-10
Good 15-18 3.3-4.5 277% 6-7
Fair 10-15 2-3.3 160% 4-6
Poor <10 <2 0% 1-3
The LTE radio automatically selects the best throughput based on measured SINR.
Electrical specification (minimum/maximum) Ports 1, 2, 3, 4 Ports 5, 6, 7, 8
Frequency bands, MHz 617-698 698-894 1695-1880 1850-1990 1920-2200
Polarization ± 45° ± 45°
Gain over all tilts, max, dBi 12.8 14.1 17.2 17.4 17.8
Horizontal beamwidth (HBW), degrees1 68 62 64 61 62
Front-to-back ratio, co-polar power @180°± 30°, dB >27 >29 >32 >35 >32
Vertical beamwidth (VBW), degrees1 18.5 16.5 7.2 6.8 6.3
Electrical downtilt (EDT) range, degrees 2-16 2-12
First upper side lobe (USLS) suppression, dB1 ≤-16.0 ≤-16.5 ≤-18.0 ≤-18.0 ≤-18.0
Minimum cross-polar isolation, port-to-port, dB1 25 25 25 25 25
Max VSWR / return loss, dB 1.5:1 / -14.0 1.5:1 / -14.0
Max passive intermodulation (PIM), 2x20W carrier, dBc -153 -153
Max input power per any port, watts 300 250
Total composite power all ports (1-8), watts2 1500

1 Typical value over frequency and tilt

2 Power rated up to +55 °C

Electrical specification (minimum/maximum) Ports 1, 2, 3, 4 Ports 5, 6, 7, 8
Frequency bands, MHz 617-698 698-894 1695-1880 1850-1990 1920-2200
Average gain over all tilts, dBi (Gain Tolerance) 12.3±0.5 13.1±0.5 16.8±0.4 17.0±0.4 17.3±0.5
Horizontal beamwidth tolerance (HBW), degrees1 ±5 ±6.5 ±5.0 ±3.5 ±5.0
Vertical beamwidth tolerance (VBW), degrees ±0.3 ±0.3 ±0.3 ±0.3 ±0.3
Front-to-back ratio, co-polar power @180°± 30°, dB >27 >25 >25 >26 >24
X-Pol discrimination (CPR) at boresight, dB >20 >19 >17.5 >19 >20
First upper side lobe (USLS) suppression boresight to 20°, dB1 ≤-16 ≤-15 ≤-16 ≤-16 ≤-16



Mechanical specifications
Dimensions height/width/depth, inches (mm) 60/ 20.0/ 8.0 (1524/ 508.0/ 203.2)
Shipping dimensions length/width/height, inches (mm) 65.3/ 23.8/ 14.5 (1659/ 605/ 368)
No. of RF input ports, connector type, and location 8 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 58.8 (26.7)
Shipping weight, lb (kg) 97.8 (44.36)
Antenna mounting and downtilt kit included with antenna 91900318
Net weight of the mounting and downtilt kit, lb (kg) 18 (8.2)
Range of mechanical up/down tilt -2° to 12°
Rated wind survival speed, mph (km/h) 150 (241)
Frontal and lateral wind loading @ 150 km/h, lbf (N) 102.8 (457.3), 21.8 (97)
Effective projected area @ 150 km/h (EPA), frontal, sq ft 4.6

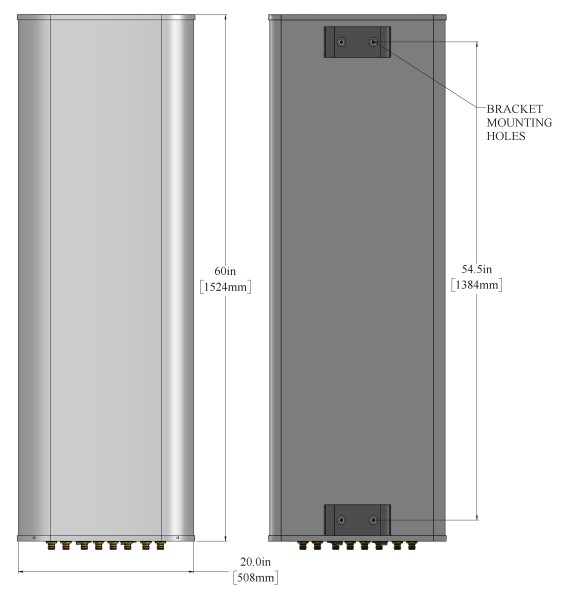

Front view Back view
Bottom view
Remote electrical tilt (RET 1000) information
RET location Integrated into antenna
RET interface connector type 8-pin AISG connector per IEC 60130-9
RET connector torque Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight)
RET interface connector quantity 2 pairs of AISG male/female connectors
RET interface connector location Bottom of the antenna
Total no. of internal RETs 617-894 MHz 1
Total no. of internal RETs 1695-2200 MHz 1
RET input operating voltage, vdc 10-30
RET max power consumption, idle state, W ≤ 2.0
RET max power consumption, normal operating conditions, W ≤ 10.0
RET communication protocol Hardware AISG 3.0; firmware AISG 2.0, field-upgradable to AISG 3.0
RET and RF connector topology
Each RET device can be controlled via the designated external AISG connector as shown below:
Band RF port
617-894 1-4
Band RF port
1695-2200 5-8
Array topology

4 sets of radiating arrays

R1: 617-894 MHz

R2: 617-894 MHz

B1: 1695-2200 MHz

B2: 1695-2200 MHz
Band RF port
617-894 1-2
617-894 3-4
1695-2200 5-6
1695-2200 7-8

V2.0

01/27/23
