X-Pol Hex-Port 8 ft 65° macro FIT (Form in Tighter): 2 ports 698/798-824/894 MHz and 4 ports 1695-2200 MHz |
|
---|---|
|
|
Electrical specification (minimum/maximum) | Ports 1, 2 | Ports 3, 4, 5, 6 | |||
---|---|---|---|---|---|
Frequency bands, MHz | 698-798 | 824-894 | 1695-1880 | 1850-1990 | 1920-2200 |
Polarization | ± 45° | ± 45° | |||
Maximum gain over all tilts, dBi | 15.6 | 16.4 | 18.3 | 18.6 | 18.7 |
Average gain over all tilts, dBi | 15.3 ± 0.3 | 16.0 ± 0.3 | 18.0 ± 0.3 | 18.3 ± 0.3 | 18.4 ± 0.3 |
Horizontal beamwidth (HBW), degrees | 67 | 65 | 66 | 65 | 64 |
Front-to-back ratio, co-polar power @180°± 30°, dB | >27 | >28 | >30 | >32 | >30 |
X-Pol discrimination (CPR) at boresight, dB | >20 | >20 | >25 | >20 | >20 |
Sector power ratio, percent1 | <4.6 | <3.6 | <4.1 | <3.8 | <3.6 |
Vertical beamwidth (VBW), degrees1 | 9.3 | 8.4 | 5.8 | 5.6 | 5.2 |
Electrical downtilt (EDT) range, degrees | 0-12 | 0-12 | 0-9 | ||
First upper side lobe (USLS) suppression, dB1 | ≤-16.0 | ≤-16.0 | ≤-18.0 | ≤-16.0 | ≤-16.0 |
Cross-polar isolation, port-to-port, dB1 | 25 | 25 | 25 | 25 | 25 |
Max VSWR / return loss, dB | 1.5:1 / -14.0 | 1.5:1 / -14.0 | |||
Max passive intermodulation (PIM), 2x20W carrier, dBc | -153 | -153 | |||
Max input power per any port, watts | 300 | 250 | |||
Total composite power all ports, watts | 1500 |
1 Typical value over frequency and tilt
Mechanical specifications | |
---|---|
Dimensions height/width/depth, inches (mm) | 95.9/ 12.2/ 10.7 (2436/ 310/ 273) |
Shipping dimensions length/width/height, inches (mm) | 106/ 20/ 15 (2692/ 508/ 381) |
No. of RF input ports, connector type, and location | 6 x 4.3-10 female, bottom |
RF connector torque | 96 lbf·in (10.85 N·m or 8 lbf·ft) |
Net antenna weight, lb (kg) | 74.9 (34) |
Shipping weight, lb (kg) | 124.8 (56.6) |
Antenna mounting and downtilt kit included with antenna | 91900318, 91900319 (middle bracket) |
Net weight of the mounting and downtilt kit, lb (kg) | 26 (11.82) |
Range of mechanical up/down tilt | -2° to 12° |
Rated wind survival speed, mph (km/h) | 150 (241) |
Frontal and lateral wind loading @ 150 km/h, lbf (N) | 90.5 (402.6), 81.2 (361.2) |
Equivalent flat plate @ 100 mph and Cd=2, sq ft | 2.27 |
EPA frontal and lateral, ft2, (m2) | 4.1 (0.38), 2.2 (0.20) |

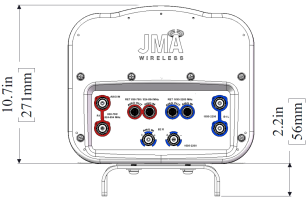

Front view | Back view | Bottom view |
---|---|---|
Ordering information | |
---|---|
Antenna model | Description |
MX06FIT865-03E | 8F X-Pol HEX FIT 65°, 0-12° / 0-9° RET, 4.3-10 & SBT, independent tilt 700/850 RET |
Optional accessories | |
AISG cables | M/F cables for AISG connections |
PCU-1000 RET controller | Stand-alone controller for RET control and configurations |
91900314-03 | Dual Mount Bracket (see 91900314 bracket document for details) |
Remote electrical tilt (RET 1000) information | |
---|---|
RET location | Integrated into antenna |
RET interface connector type | 8-pin AISG connector per IEC 60130-9 |
RET connector torque | Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight) |
RET interface connector quantity | 2 pairs of AISG male/female connectors |
RET interface connector location | Bottom of the antenna |
Total no. of internal RETs (low bands) | 2 |
Total no. of internal RETs (high bands) | 1 |
RET input operating voltage, vdc | 10-30 |
RET max power consumption, idle state, W | ≤ 2.0 |
RET max power consumption, normal operating conditions, W | ≤ 13.0 |
RET communication protocol | AISG 2.0 / 3GPP |

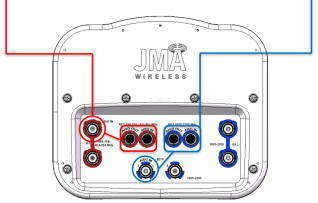

RET and RF connector topology | |
---|---|
Each RET device can be controlled either via the designated external AISG connector or RF port as shown below: | |
|
|
Array topology | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
3 sets of radiating arrays R1/R2: 698-798 / 824-894 MHz B1: 1695-2200 MHz B2: 1695-2200 MHz |
|
V1.0
