MX04FIT865-03E



NWAV™ X-Pol 4-Port Antenna


Download this datasheet

X-Pol 4-Port 8 ft 65° macro FIT (Form in Tighter):

4 ports 698/798-824/894 MHz
  • Excellent passive intermodulation (PIM) performance reduces harmful interference.

  • Fully integrated (iRETs) with independent RET control for 700 MHz and 850 MHz for ease of network optimization

  • Enhanced low band pattern performance

  • Compatible with dual band 700/850 MHz radios with independent 700 and 850 MHz EDT without external diplexers

  • Superior cross polarization and front-to-back performance

  • Suitable for 5G/LTE/CDMA/PCS/UMTS/GSM air interface technologies

  • Integrated Smart Bias-T reduce leasing costs

  • Optimized width and lighter weight for reduced wind loading



Electrical specification (minimum/maximum) Ports 1, 2, 3, 4
Frequency bands, MHz 698-798 824-894
Polarization ± 45°
Maximum gain over all tilts, dBi 16.1 16.9
Average gain over all tilts, dBi 15.8 ± 0.3 16.6 ± 0.3
Horizontal beamwidth (HBW), degrees 67 62
Front-to-back ratio, co-polar power @180°± 30°, dB >27 >28
Front-to-back ratio, co-polar power @180°, dB >31 >29
X-Pol discrimination (CPR) at boresight, dB >20 >20
Sector power ratio, percent1 <4.6 <3.6
Vertical beamwidth (VBW), degrees1 9.3 8.4
Electrical downtilt (EDT) range, degrees 0-12 0-12
First upper side lobe (USLS) suppression, dB1 ≤-16.0 ≤-16.0
Cross-polar isolation, port-to-port, dB1 25 25
Max VSWR / return loss, dB 1.5:1 / -14.0
Max passive intermodulation (PIM), 2x20W carrier, dBc -153
Max input power per any port, watts 300
Total composite power all ports, watts 1500

1 Typical value over frequency and tilt

Mechanical specifications
Dimensions height/width/depth, inches (mm) 96/ 20/ 8(2440/ 510/ 203)
Shipping dimensions length/width/height, inches (mm) 100.6/ 23.8/ 14.5(2555/ 605/ 368)
No. of RF input ports, connector type, and location 4 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 89.7 (40.7)
Shipping weight, lb (kg) 149.7 (67.9)
Antenna mounting and downtilt kit included with antenna 91900318, 91900319 (middle bracket)
Net weight of the mounting and downtilt kit, lb (kg) 26 (11.82)
Range of mechanical up/down tilt -2° to 12°
Rated wind survival speed, mph (km/h) 150 (241)
Frontal and lateral wind loading @ 150 km/h, lbf (N) 172.3 (766.4), 79.8 (355.0)
EPA frontal and lateral, ft2, (m2) 7.7 (0.72), 3.6 (0.33)

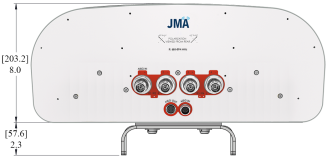

Front view Back view Bottom view
Ordering information
Antenna model Description
MX04FIT865-03E 8F X-Pol 4 PORT FIT 65°, 0-12°, 4.3-10 & SBT, independent tilt 700/850 RET
Optional accessories
AISG cables M/F cables for AISG connections
PCU-1000 RET controller Stand-alone controller for RET control and configurations
91900314-03 Dual Mount Bracket (see 91900314 bracket document for details)
Remote electrical tilt (RET 1000) information
RET location Integrated into antenna
RET interface connector type 8-pin AISG connector per IEC 60130-9 or RF port bias-t
RET connector torque Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight)
RET interface connector quantity 1 pair of AISG male/female connectors and 1 RF port Bias T
RET interface connector location Bottom of the antenna
Total no. of internal RETs (low bands) 2
RET input operating voltage, vdc 10-30
RET max power consumption, idle state, W ≤ 2.0
RET max power consumption, normal operating conditions, W ≤ 13.0
RET communication protocol AISG 2.0 / 3GPP
    RET and RF connector topology

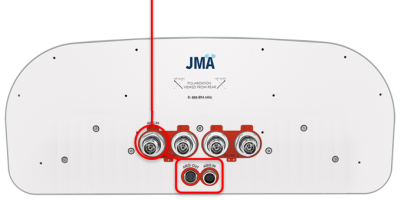

Each RET device can be controlled either via the designated external AISG connector or RF smart bias-t port as shown below:

Band RF port
698-894 1-4

Array topology

2 sets of radiating arrays

R1/R2: 698-798 / 824-894 MHz

R3/R4: 698-798 / 824-894 MHz


Band RF port
698-798 / 824-894 1-2
698-798 / 824-894 3-4
