10-port panel antenna from 1695-5925 MHz 2F panel antenna, 10 ports: 4 ports 1695-2690 MHz, 4 ports 3550-3700 MHz, and 2 ports 5150-5925 MHz* |
|
---|---|
* This antenna meets current U-NII-1 requirements for gain and upper side lobe pattern characteristics with Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices - Part 15, Subpart E. Compliant to 789033 D02 General U-NII Test Procedures v01r04. |
|
Electrical specification (min/max) | Ports 1, 2, 3, 4 | ||||
---|---|---|---|---|---|
Frequency bands, MHz | 1695-1880 | 1850-1990 | 1920-2180 | 2300-2400 | 2496-2690 |
Polarization | ± 45° | ||||
Average gain, dBi | 13.3 | 13.8 | 13.9 | 14.2 | 14.3 |
Horizontal beamwidth (HBW), degrees1 | 67° | 64° | 64° | 62° | 58° |
Vertical beamwidth (VBW), degrees1 | 16.7° | 16.4° | 15.4° | 13.4° | 11.7° |
Fixed electrical downtilt (EDT), degrees | 0 or 6° | ||||
Cross-polar isolation, port-to-port, dB1 | 25 | ||||
Max VSWR / return loss, dB | 1.5:1 / -14.0 | ||||
Max PIM (3rd order, 2x20W) dBc | -153 | ||||
Maximum input power port, watts | 150 |
Electrical specification (min/max) |
|
|||
---|---|---|---|---|
Frequency bands, MHz | 3550-3700 | 5150-5925 | ||
Polarization | ± 45° | ± 45° | ||
Average gain, dBi | 15.5 | 5.5 | ||
Horizontal beamwidth (HBW), degrees1 | 48° | 48° | ||
Vertical beamwidth (VBW), degrees1 | 9° | 26° | ||
Fixed electrical downtilt (EDT), degrees | 0° | |||
Cross-polar isolation, port-to-port, dB1 | 22 | 25 | ||
Max VSWR / return loss, dB | 1.5:1 / -14.0 | 1.5:1 / -14.0 | ||
Max PIM (3rd order, 2x20W) dBc | N/A | |||
Maximum input power, watts | 50 | 10 |
1 Typical value over frequency. | Note: Vertical beam upper side lobe at 5150-5925 MHz < -15 dB at > 30° above horizon |
Mechanical specifications | |
---|---|
Dimensions height/width/depth, inches (mm) |
24/ 15/ 3.75 (610/ 381/ 127) |
No. of RF input ports, connector type, and location | 10 x 4.3-10 female, back |
RF connector torque | 96 lbf·in (10.85 N·m or 8 lbf·ft) |
Net antenna weight, lb (kg) | 11.1 (5) |
Weight with supplied pipe mount bracket, lb (kg) | 16.2 (7.3) |
Shipping weight, lb (kg) | 22 (10) |
Rated wind survival speed, mph (km/h) | 150 (241) |
Frontal wind loading @ 150 km/h, lbf (N) | 43 (191) |
Equivalent flat plate @ 100 mph and Cd=2, sq ft | 0.45 |
Installation instructions | DX-*/SX-*/IX-* Antenna Mounting Instructions and Kits 81900511 |
Weep hole drilling instructions | DX-*/SX-*/IX-* Antenna Weep Hole Modification Guide |
Front view | Back view |
---|---|

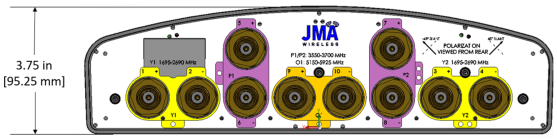

Bottom view |
---|
|
Ordering information | |
---|---|
Antenna model | Description |
DX10FRO260-00 | 2F panel antenna, 10 ports, (4) 1695-2700 zero degrees EDT, (4) CBRS zero degrees EDT, (2) LAA zero degrees EDT |
DX10FRO260-06 | 2F panel antenna, 10 ports, (4) 1695-2700 six degrees EDT, (4) CBRS zero degrees EDT, (2) LAA zero degrees EDT |
Mounting kit (included) | 91900324 articulating bracket with X- and Y-axis adjustments and rotation |
