CX04OMI536-1C

 Product discontinued from
April 2025
Replacement model:
CX20OMI536-1C

NWAV™ X-Pol Quasi-omni Cantenna
Download this datasheet

4-port 5.5 ft 360° cantenna with RET-controlled HB:

4 ports 1695-2180 MHz
  • Small Cell 4-port quasi-omni antenna

  • Suitable for pole or building mount

  • 4x4 MIMO high-band

  • Internal beam forming

  • RET control

  • Suitable for LTE/UMTS/CDMA/GSM technologies



Electrical specification (minimum/maximum) Ports 1, 2, 3, 4
Frequency bands, MHz 1695-1880 1850-1990 1920-2180
Polarization ± 45°
Average gain over all tilts, dBi 11.8 11.9 12.2
Horizontal beamwidth (HBW), degrees 360°
Vertical beamwidth (VBW), degrees1 7.7° 7.2° 7.0°
Electrical downtilt (EDT) range, degrees 2-8° (RET)
Cross-polar isolation, port-to-port, dB1 25 25 25
Max VSWR / return loss, dB 1.5:1 / -14.0
Max passive intermodulation (PIM), 2x20W carrier, dBc -153
Maximum input power per port, watts 125
Maximum total input power, watts 500

1 Typical value over frequency and tilt

Ordering information
Antenna model Description
CX04OMI536-1C 5F X-Pol OMNI 360° 1695-2700 MHz 2-8° RET, 4.3-10
Optional accessories
AISG cables M/F cables for AISG connections
PCU-1000 RET controller Stand-alone controller for RET control and configurations
Mechanical specifications
Dimensions height/diameter, inches (mm) 66.0/ 14.0 (1676.4/ 355)
Antenna volume (cubic feet) 5.88
No. of RF input ports, connector type, and location 4 x 4.3-10 female, bottom
RF connector torque 96 lbf·in (10.85 N·m or 8 lbf·ft)
Net antenna weight, lb (kg) 58.0 (26.3)
Rated wind survival speed, mph (km/h) 150 (241)
Frontal wind loading @ 160 km/h, lbf (N) 135.4 (602.3)
Equivalent flat plate @ 100 mph and Cd=2, sq ft 2.73

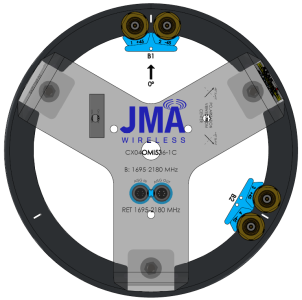

Mechanical dimensions: example side arm mounting view End view
  The 0 degree reference arrow corresponds to the 0 degree position in the antenna pattern file. Each antenna pattern file uses a top down orientation view (the patterns are viewed from the top of the antenna looking down).
Notes on cylinder brackets Mounting details
  • All CX* antennas come with the bottom mount bracket (marked as A ) factory-installed (all factory testing is done with bracket attached)
  • Hardware is included with each antenna to connect bottom bracket to different mounting systems.
  • JMA cylinder brackets are compatible with bottom mount via universal cantenna mount sleeve (marked as B ), sold separately
  • To mitigate potential risk of PIM issues, the recommended torque values need to be applied.
Small Cell solutions and mounting systems (sold separately)
Side Arm Mounting System SC-BKT-SA-(color) Wide Diameter Pole SC-BKT-WTPE4-(color)
Steel Pole Mounting System SC-BKT-SLA (color)
Remote electrical tilt (RET 1000) information
RET location Integrated into antenna
RET interface connector type 8-pin AISG connector per IEC 60130-9
RET connector torque Min 0.5 N·m to max 1.0 N·m (hand pressure & finger tight)
RET interface connector quantity 1 pair of AISG male/female connectors
RET interface connector location Bottom of the antenna
Total no. of internal RETs high bands 1
RET input operating voltage, vdc 10-30
RET max power consumption, idle state, W ≤ 2.0
RET max power consumption, normal operating conditions, W ≤ 13.0
RET communication protocol AISG 2.0 / 3GPP
RET topology
A single RET device controls each sector via the designated external AISG connector as shown below:
RET device Band RF port
1 1695-2180 1-4
Array topology

2 sets of radiating arrays per sector

B1: 1695-2180 MHz

B2: 1695-2180 MHz
Band RF port
1695-2180 1-2
1695-2180 3-4

V2.0

10/10/24
